SC Green Fiber Adapter customized optic kit with flange or flangeless

Brand Name:	HACEN
MOQ:	5000PCS
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	Depends on the cavities and toolings

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RoHs ,ISO9001,ISO14001,ISO45001

Document:

MPO simplex.pdf

Type:

Adapter With Flange

Material:

PEI/PBT

HS Code:

8544700000

Application:

LAN & WAN

Environment Conditions:

- 25 °C ~ + 85 °C

Brand:

OEM

Insetion Loss:

< 0.2dB

Storage Temperature:

Storage Temperature

Packaging Details:

CARTON

Supply Ability:

Depends on the cavities and toolings

Highlight:

SC Green Fiber Optic Adapter

flangeless Fiber Optic Adapter

Customized Optic Kit Fiber Adapter

Product Description

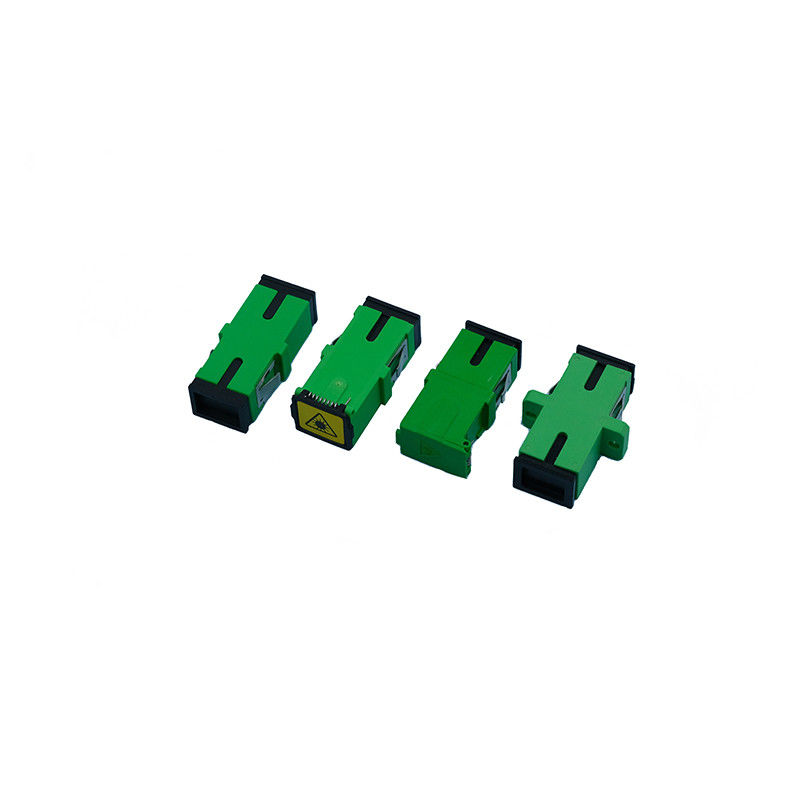

SC Green Fiber Adapter customized optic kit with flange or flangeless

Fiber Optic Adapters are an important component in a fiber optic network; they are used in a fiber optic patch panel or any other outlet to connect two connectors. Fiber Optic adaptors are available for all standard connector types in both singlemode and multimode including Simplex and duplex versions. Our fiber optic adapters are made with high precision machines which ensure precise alignment for the connectors when they are plugged in.

Fiber optic adapter (also called flange, coupler) is a fiber optic connector docking components, including FC, SC, ST, LC, MTRJ, MU and switching between products such as ST-SC, FC-ST etc., are widely used in optical distribution frame (ODF), optical fiber communication equipment, instrumentation, stable and reliable performance.

Features
- 100% tested on optical performance (Insertion Loss & Return Loss)
- End-face geometry requirement complies to Telcordia GR-326-CORE
- For end-to-end fiber cable connectivity
- Available in singlemode and multimode, including APC and various colours
- Female to female & male to female adapters available

- Good repeatability

Applications

- CATV

- Active device termination

- Telecommunication networks

- Metro networks

- Local Area Networks (LANs)

- Data processing networks

Environmental & Mechanical Data

Operating Temperature	-40 to +75º C
Storage Temperature:	-40 to +85º C
Temperature Cycling (61300-2-18)	-40 to +75º C, 40 cycles=0.2dB change
High temperature (61300-2-18)	70˚c for 96Hrs, <0.4dB change
Damp Heat (61300-2-19)	40º C at 93%RH for 96 Hrs, <0.4dB change
Vibration-Mated Pair (61300-2-1)	10-55Hz, 1.5mm P to P <0.2dB change
Mating Durability (61300-2-2)	500 Mating Cycles, clean every 25, <0.2dB change
Adapter Material	Plastic
Adapter Color	Black,Blue,Green,Aqua,
