Fiber Optic Pigtail Connector LC APC Simplex Fiber Termination Kits For Optical Networks

Brand Name:	HACEN
MOQ:	3000PCS
Price:	0.05-0.2
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	Depends on the cavities and toolings

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RoHs ,ISO9001,ISO14001,ISO45001

Product Type:

Fiber Optic Connector

Fiber Cable Length:

Customizable

Connector Type:

Fiber Compatibility:

9/125μm, 50/125μm, 62.5/125μm

Compatibility:

Compatible With Standard LC Adapters And Patch Cords

Fiber Color:

Blue/Beige/Green/Beige

Boot Type:

Standard/Short/Long

Packaging Details:

CARTON

Supply Ability:

Depends on the cavities and toolings

Highlight:

LC APC fiber termination kits

simplex fiber termination kits

simplex fiber optic pigtail connector

Product Description

Fiber Optic Pigtail Connector LC APC simplex fiber termination kits for optical network

LC Fiber Connector	SM UPC/APC	MM
Insertion Loss Typical	0.15dB	0.1dB
Insertion Loss Max	0.3dB	0.3dB
Return Loss Typical	APC≥65 UPC≥55	≥25
Ferrule Size	125.3um	127um

LC Simplex Connectors

-Efficient Design: Ultra-compact SFF for space optimization.

-Versatile: Compatible with 0.9mm, 2.0mm, and 3.0mm boot connectors.

-Applications: Suitable for single and multi-mode applications.

-Packaging: High-density packaging for versatility.

-Durability: Offered in two-piece or uniboot designs.

Availability
-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
-Housing kits without ferrule are available.
-PC/ APC /UPC are available

-Different colors and size are available

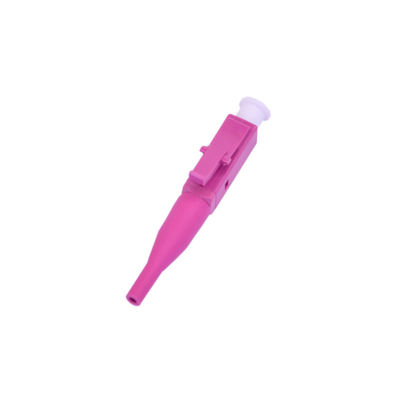

Fiber Optic Pigtail Connector LC APC Simplex Fiber Termination Kits For Optical Networks 0

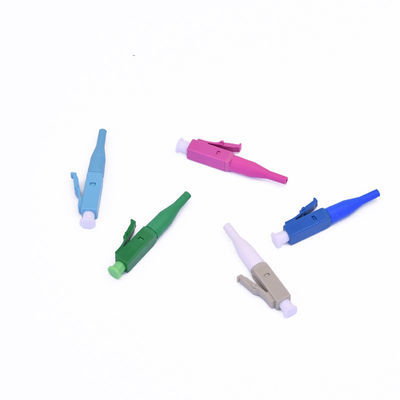

Fiber Optic Pigtail Connector LC APC Simplex Fiber Termination Kits For Optical Networks 1
