Multimode MPO Fiber Optic Adapter High Precision End To End Connectivity

Multimode MPO Fiber Optic Adapter High Precision End To End Connectivity

Brand Name:	HACEN
MOQ:	5000PCS
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	Depends on the cavities and toolings

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RoHs ,ISO9001,ISO14001,ISO45001

Color:

Red/Blue/Green/Aqua/Beige

Packing:

Ploybag/Blister Box

Environment Conditions:

- 25 °C ~ + 85 °C

Type:

Adapter With Flange

Sample:

Welcome Ask Sample For Testing

HS Code:

8544700000

Origin:

China

Adapter Type:

MPO

Packaging Details:

CARTON

Supply Ability:

Depends on the cavities and toolings

Highlight:

Multimode Fiber Optic Adapter

Fiber Optic Adapter High Precision

Product Description

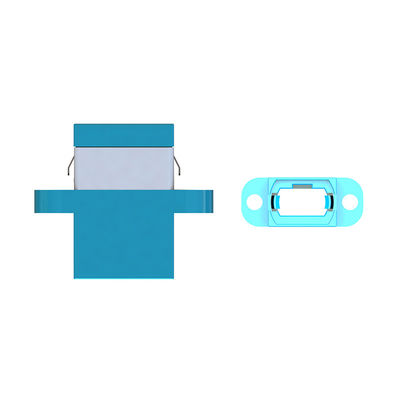

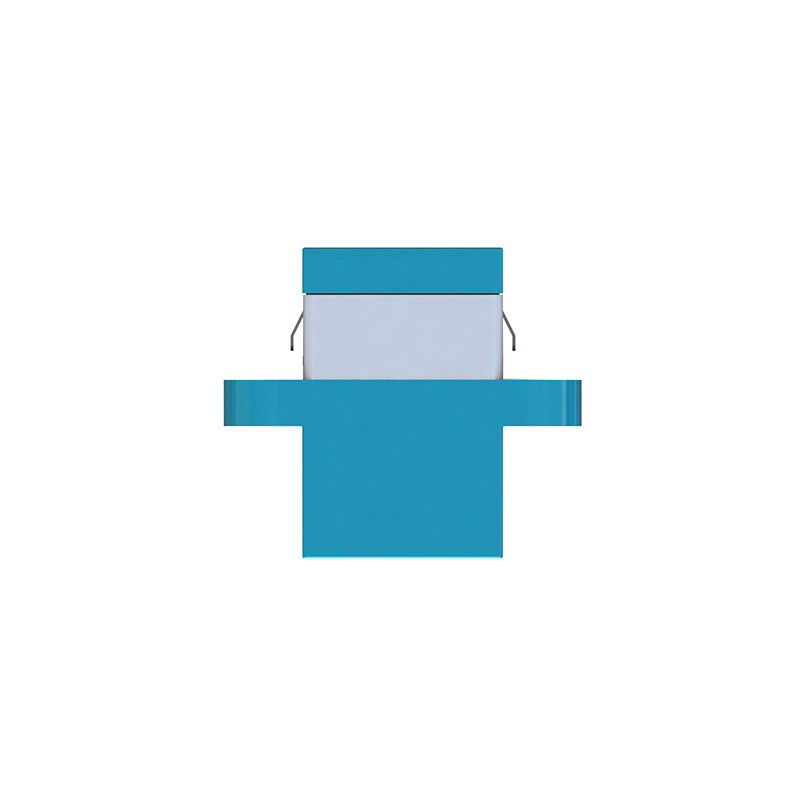

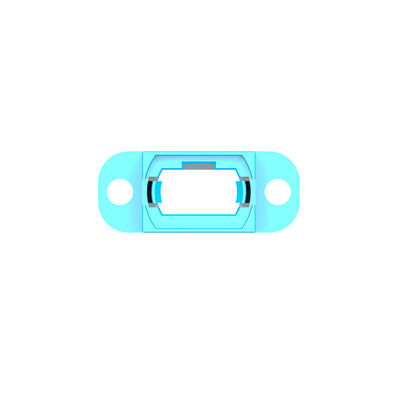

Multimode MPO Fiber Optic Adapter High Precision End-to-End Connectivity

Fiber optic adapter (also called flange, coupler) is a fiber optic connector docking components, including FC, SC, ST, LC, MTRJ, MU and switching between products such as ST-SC, FC-ST etc., are widely used in optical distribution frame (ODF), optical fiber communication equipment, instrumentation, stable and reliable performance.

Features
- 100% tested on optical performance (Insertion Loss & Return Loss)
- End-face geometry requirement complies to Telcordia GR-326-CORE

- Low insertion and return loss and back reflection

- High Precision Alignment

- Good Wearability

- Good repeatability

Applications

-CATV

-Active device termination

-Telecommunication networks

-Metro networks

-Test equipment

Environmental & Mechanical Data

Operating Temperature	-40 to +75º C
Storage Temperature:	-40 to +85º C
Temperature Cycling (61300-2-18)	-40 to +75º C, 40 cycles=0.2dB change
High temperature (61300-2-18)	70˚c for 96Hrs, <0.4dB change
Damp Heat (61300-2-19)	40º C at 93%RH for 96 Hrs, <0.4dB change
Vibration-Mated Pair (61300-2-1)	10-55Hz, 1.5mm P to P <0.2dB change
Mating Durability (61300-2-2)	500 Mating Cycles, clean every 25, <0.2dB change
Adapter Material	Plastic
Adapter Color	Black,Blue,Green,Aqua,

FAQ

1.What are you selling ?

We are a factory with 15years experience in high-precision mold design and development as well as plastic product injection .including fiber communication parts, consumer electronic products, Medical Products, Auto parts, especially good at fiber communication field ,like fiber topic connector kits ,fiber adaptor

2.Whats the MOQ?

MOQ is flexible based on the products type.

3.Whats the best price you can offer?

The unit price will vary according to the material you want and the quantity you order

4.Do you support customization?

Yes ,customization is available according to your product requirements.

5.Can I get a sample first?

Yes ,Warmly welcome

6.Can I add my own logo?

Yes.OEM and ODM are available .
