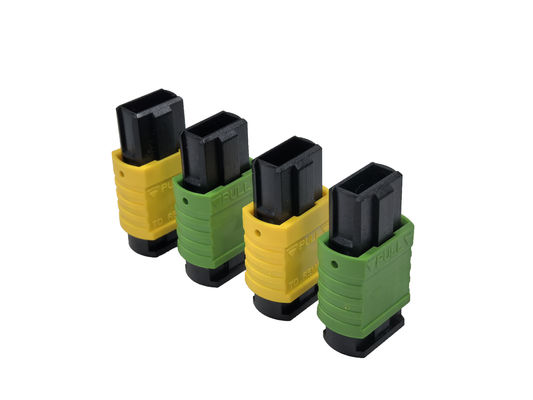

MPO Fiber Optic Terminal Kits Single Mode / Multi Mode Fiber Optic Network Connector

MPO Fiber Optic Terminal Kits Single Mode / Multi Mode Fiber Optic Network Connector

Brand Name:	HACEN
Model Number:	MPO
MOQ:	5000PCS
Price:	Negotiable
Payment Terms:	T/T, , Western Union
Supply Ability:	Depends on the cavities and toolings

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN,CHINA

Certification:

RoHs ,ISO9001,ISO14001,ISO45001

Document:

0-C20080601J--MPO-long boot...ot.pdf

Durability:

≥500 Times

Boot Latch:

Push-Pull/Locking

Ferrule Material:

Ceramic/Phosphor Bronze

Fiber Type:

Single-mode/Multi-mode

Boot Angle:

0°/45°/90°

Housing Material:

Plastic/Metal

Color:

Black/Blue/Green/Yellow/Agua

Packaging Details:

Carton

Supply Ability:

Depends on the cavities and toolings

Highlight:

MPO Fiber Optic Terminal Kits

Single Mode Fiber Optic Terminal Kits

MPO Fiber Optic Network Connector

Product Description

Find The Best MPO Fiber Optic Connector For Your Fiber Optic Network At Competitive Prices

Please note that this document is for reference purposes only and may not fully correspond to the actual product. To ensure accuracy and prevent any information leakage .please contact us directly for the correct documentation.

Fiber Type	SM	MM
Insertion Loss	< 0.5 dB	< 0.7 dB
Return Loss	APC> 50 Db, PC> 40Db	/
Life Time	> 500 cycles
Working Temperature	-40°C to + 70°C
Storage Temperature	-40℃ to + 85℃
Fiber Polish	APC / PC / UPC
Connector Type	Male / Female
Boot Choices	Standard / Short / Long
Compliance	IEC 61754-7, RoHs 2.0
Ferrule Cores	4, 8, 12, 16, 24, 32, 48

FAQ

1. What are we selling ?
Fiber optic connectors and adapters. like LC .MPO.SC.E2OOO…..also you can set up new mold with us. We offer service from mold design to final plastic molding injection

2. How can we guarantee quality?

From raw materials to final shipment, we can offer inspection report or related certifications.

3. Why us ?
We focus on the fiber optical components for over 15 years , such as adapters, connectors and ONU boxes . experienced in molding injection for over 20years like consumer plastic ,auto plastic ,

4. What materials are we using ?

TPEE, TPU, PEI, PBT, nylon, LCP, PPS, POM, PC, ABS and some others too.

5. Do you support customization?

Yes , both OEM and ODM are available.
