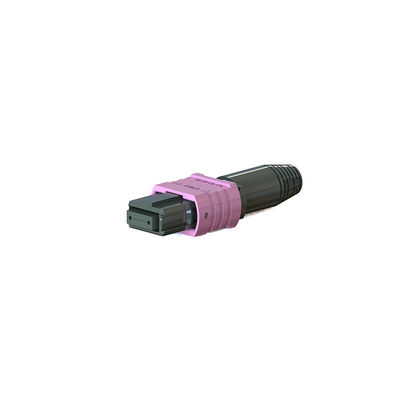

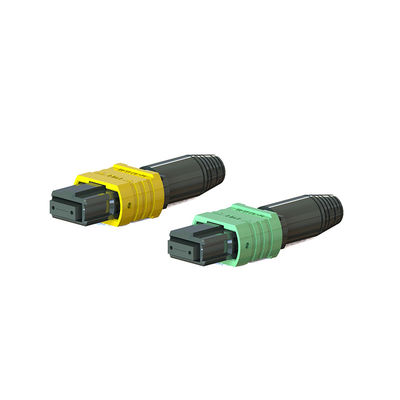

Plastic Injection MPO Fiber Optic Connector Mini Size For Fiber Communication

Plastic Injection MPO Fiber Optic Connector Mini Size For Fiber Communication

Brand Name:	HACEN
Model Number:	MPO
MOQ:	5000PCS
Price:	Negotiable
Payment Terms:	T/T, , Western Union
Supply Ability:	Depends on the cavities and toolings

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN,CHINA

Certification:

RoHs ,ISO9001,ISO14001,ISO45001

Fiber Mode:

APC Or UPC

Housing Material:

Metal Or Plastic

Ferrule Material:

Ceramic Or Metal

Connector Type:

Male Or Female

Operating Temperature:

-40°C To +85°C

Fiber Count:

8, 12, 24, 48, 72, 96, 144

Boot Material:

PVC Or LSZH

Fiber Polarity:

Type A, Type B, Type C

Packaging Details:

Carton

Supply Ability:

Depends on the cavities and toolings

Highlight:

Plastic Injection MPO Fiber Optic Connector

MPO Fiber Optic Connector Mini

Product Description

Plastic Product Injection For Fiber Communication MPO Optic Connector Mini Size

The MPO Fiber connector can be 4 to 24 cores,with different boot for reference,such as Ribbon boot,round boota and rare boot

Availablity
- The connector can be supplied as a pre-assembled one-piece connector or as connector kits.

- Housing kits with /without ferrule are available

Features

- Low insertion loss and high return loss

- Strong environment and high temperature stability

- High Precision Alignment

Applications

- Fiber Optic Patch Cord & Pigtail

- Data centers and enterprise networks

- High-speed telecommunications networks

Advantages

- Hig density (4/8/12/16/24 fibers per ferrule)

- Reduce downtime (MPO connectors enable quick reconfiguration and easier troubleshooting)

- Flexibility (MPO connectors can be used in a variety of configurations)

Fiber Type	SM	MM
Insertion Loss	< 0.5 dB	< 0.7 dB
Return Loss	APC> 50 Db, PC> 40Db	/
Life Time	> 500 cycles
Working Temperature	-40°C to + 70°C
Storage Temperature	-40℃ to + 85℃
Fiber Polish	APC / PC / UPC
Connector Type	Male / Female
Boot Choices	Standard / Short / Long
Compliance	IEC 61754-7, RoHs 2.0
Ferrule Cores	4, 8, 12, 16, 24, 32, 48

FAQ

1.What are you selling ?

We are a factory with 15years experience in high-precision mold design and development as well as plastic product injection .including fiber communication parts, consumer electronic products, Medical Products, Auto parts, especially good at fiber communication field ,like fiber topic connector kits ,fiber adaptor.

2.Whats the MOQ?

MOQ is flexible based on the products type.

3.Whats the best price you can offer?

The unit price will vary according to the material you want and the quantity you order.

4.Do you support customization?

Yes ,customization is available according to your product requirements.

5.Can I get a sample first?

Yes ,Warmly welcome.

6.Can I add my own logo?

Yes.OEM and ODM are available .
