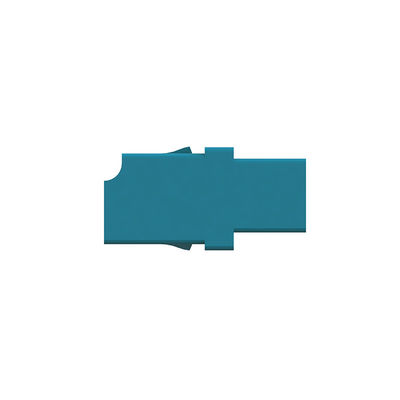

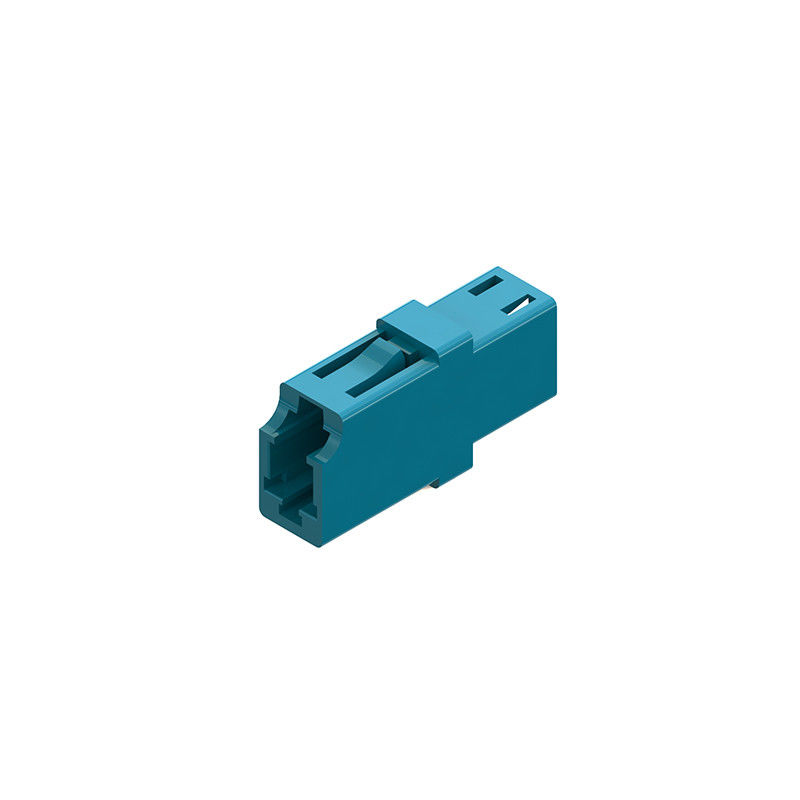

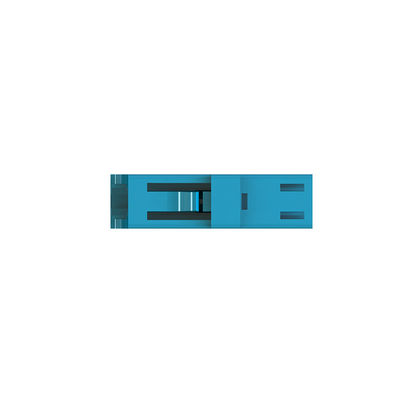

IEC Reach Standard LC Fiber Optic Adapter In Telecommunication Networks And CATV

IEC Reach Standard LC Fiber Optic Adapter In Telecommunication Networks And CATV

Brand Name:	HACEN
MOQ:	5000PCS
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	Depends on the cavities and toolings

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RoHs ,ISO9001,ISO14001,ISO45001

Features:

High Size Precision

Origin:

China

Adapter Type:

LC Simplex

Operation Temperature:

-40 ~+75 Degree

Standard:

IEC, Reach

Ferrule End Face:

PC,UPC

Insert Loss:

≤0.2dB

Fiber:

250um Bare Fiber

Packaging Details:

CARTON

Supply Ability:

Depends on the cavities and toolings

Highlight:

IEC LC Fiber Optic Adapter

CATV LC Fiber Optic Adapter

Product Description

LC Fiber Optic Adapter Connectivity In Telecommunication Networks And CATV

Fiber Optic Adaptors are color coded allowing easy identification of the adaptor type.

Features
- 100% tested on optical performance (Insertion Loss & Return Loss)
- End-face geometry requirement complies to Telcordia GR-326-CORE
- For end-to-end fiber cable connectivity
- Available in singlemode and multimode, including APC and various colours

- Good Temperature characteristic

- Good repeatability

Applications

- CATV

- Active device termination

- Telecommunication networks

- Wide Area Networks (WANs)

- Test equipment

Environmental & Mechanical Data

Operating Temperature	-40 to +75º C
Storage Temperature:	-40 to +85º C
Temperature Cycling (61300-2-18)	-40 to +75º C, 40 cycles=0.2dB change
High temperature (61300-2-18)	70˚c for 96Hrs, <0.4dB change
Damp Heat (61300-2-19)	40º C at 93%RH for 96 Hrs, <0.4dB change
Vibration-Mated Pair (61300-2-1)	10-55Hz, 1.5mm P to P <0.2dB change
Mating Durability (61300-2-2)	500 Mating Cycles, clean every 25, <0.2dB change
Adapter Material	Plastic
Adapter Color	Black,Blue,Green,Aqua,

FAQ

1. What are we selling ?
Fiber optic connectors and adapters. like LC .MPO.SC.E2OOO…..also you can set up new mold with us. We offer service from mold design to final plastic molding injection

2. How can we guarantee quality?

From raw materials to final shipment, we can offer inspection report or related certifications.

3. Why us ?
We focus on the fiber optical components for over 15 years , such as adapters, connectors and ONU boxes . experienced in molding injection for over 20years like consumer plastic ,auto plastic ,

4. What materials are we using ?

TPEE, TPU, PEI, PBT, nylon, LCP, PPS, POM, PC, ABS and some others too.

5. Do you support customization?

Yes , both OEM and ODM are available.
