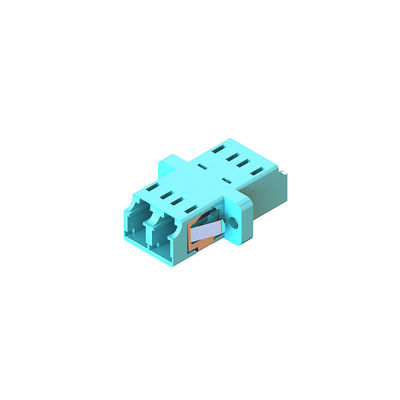

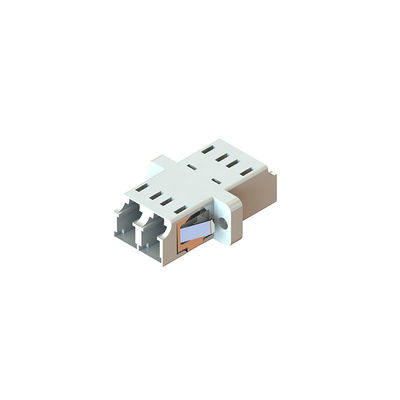

Duplex LC To LC Fiber Adapter High Precision End To End Connectivity

Duplex LC To LC Fiber Adapter High Precision End To End Connectivity

Brand Name:	HACEN
MOQ:	5000PCS
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	Depends on the cavities and toolings

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RoHs ,ISO9001,ISO14001,ISO45001

Document:

MPO simplex.pdf

Features:

High Stability

HS Code:

8544700000

Polishing:

PC/UPC

Housing Material:

Plastic, Metal

Certifications:

RoHS, ISO9001

Model Name:

OM3 LC Adapter

Fiber Cores:

Duplex

Insert Loss:

≤0.20dB

Packaging Details:

CARTON

Supply Ability:

Depends on the cavities and toolings

Highlight:

Duplex LC To LC Fiber Adapter

LC To LC Fiber Adapter High Precision

Product Description

End-To-End Connectivity With Duplex lC to lC fiber adapter For High Precision

Please note that this document is for reference purposes only and may not fully correspond to the actual product. To ensure accuracy and prevent any information leakage .please contact us directly for the correct documentation.

Features
- 100% tested on optical performance (Insertion Loss & Return Loss)
- End-face geometry requirement complies to Telcordia GR-326-CORE
- For end-to-end fiber cable connectivity

- Good interchangeability

- Good Temperature characteristic

- Good repeatability

Applications

- CATV

- Active device termination

- Telecommunication networks

- Metro networks

- Local Area Networks (LANs)

- Test equipment

Environmental & Mechanical Data

Operating Temperature	-40 to +75º C
Storage Temperature:	-40 to +85º C
Temperature Cycling (61300-2-18)	-40 to +75º C, 40 cycles=0.2dB change
High temperature (61300-2-18)	70˚c for 96Hrs, <0.4dB change
Damp Heat (61300-2-19)	40º C at 93%RH for 96 Hrs, <0.4dB change
Vibration-Mated Pair (61300-2-1)	10-55Hz, 1.5mm P to P <0.2dB change
Mating Durability (61300-2-2)	500 Mating Cycles, clean every 25, <0.2dB change
Adapter Material	Plastic
Adapter Color	Black,Blue,Green,Aqua,

FAQ

1. What are you selling ?

We are a factory with 15years experience in high-precision mold design and development as well as plastic product injection .including fiber communication parts, consumer electronic products, Medical Products, Auto parts, especially good at fiber communication field ,like fiber topic connector kits ,fiber adaptor

2. Whats the MOQ?

MOQ is flexible based on the products type.

3. Whats the best price you can offer?

The unit price will vary according to the material you want and the quantity you order

4. Do you support customization?

Yes ,customization is available according to your product requirements.

5. Can I get a sample first?

Yes ,Warmly welcome

6. Can I add my own logo?

Yes.OEM and ODM are available .
