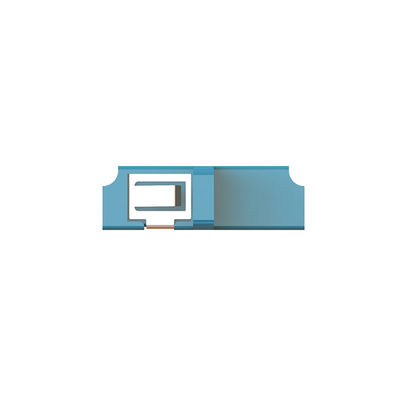

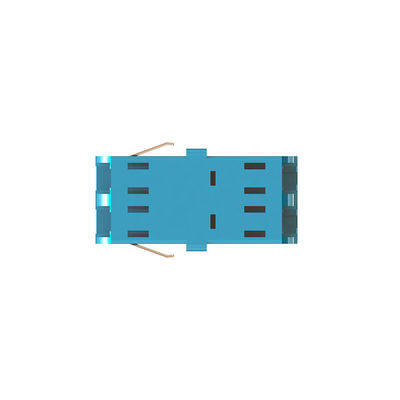

Duplex LC Fiber Optical Adapter With 100% Optical Performance Testing

Duplex LC Fiber Optical Adapter With 100% Optical Performance Testing

Brand Name:	HACEN
MOQ:	5000PCS
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	Depends on the cavities and toolings

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RoHs ,ISO9001,ISO14001,ISO45001

Packing:

Ploybag/Blister Box

Connection Type:

LC To LC

Product:

LC/UPC Duplex Fiber Optic Adaptor

Package:

Blister Box

Repeat Ability:

0.2dB

Ferrule Type:

UPC Fiber Adapter

Cable Color:

Blue,Beige,Green,Aqua,etc

Cores:

Simplex, Duplex, Quad

Packaging Details:

CARTON

Supply Ability:

Depends on the cavities and toolings

Highlight:

LC Fiber Optical Adapter

Duplex Fiber Optical Adapter

Product Description

Duplex LC Fiber Optical Adatper with 100% optical performance testing

LC fiber optic adapter, also called a fiber optic coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.

Features
- 100% tested on optical performance (Insertion Loss & Return Loss)
- End-face geometry requirement complies to Telcordia GR-326-CORE
- Coloured for easy indentification

- Low insertion and return loss and back reflection

- High Precision Alignment

Applications

-CATV

-Active device termination

-Metro networks

-Wide Area Networks (WANs)

Environmental & Mechanical Data

Operating Temperature	-40 to +75º C
Storage Temperature:	-40 to +85º C
Temperature Cycling (61300-2-18)	-40 to +75º C, 40 cycles=0.2dB change
High temperature (61300-2-18)	70˚c for 96Hrs, <0.4dB change
Damp Heat (61300-2-19)	40º C at 93%RH for 96 Hrs, <0.4dB change
Vibration-Mated Pair (61300-2-1)	10-55Hz, 1.5mm P to P <0.2dB change
Mating Durability (61300-2-2)	500 Mating Cycles, clean every 25, <0.2dB change
Adapter Material	Plastic
Adapter Color	Black,Blue,Green,Aqua,

FAQ

1.What are you selling ?

We are a factory with 15years experience in high-precision mold design and development as well as plastic product injection .including fiber communication parts, consumer electronic products, Medical Products, Auto parts, especially good at fiber communication field ,like fiber topic connector kits ,fiber adaptor

2.Whats the MOQ?

MOQ is flexible based on the products type.

3.Whats the best price you can offer?

The unit price will vary according to the material you want and the quantity you order

4.Do you support customization?

Yes ,customization is available according to your product requirements.

5.Can I get a sample first?

Yes ,Warmly welcome

6.Can I add my own logo?

Yes.OEM and ODM are available .
