Mating Durability 500 Mating Cycles clean for MPO Fiber Optic Adapter

Mating Durability 500 Mating Cycles clean for MPO Fiber Optic Adapter

Brand Name:	HACEN
MOQ:	5000PCS
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	Depends on the cavities and toolings

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RoHs ,ISO9001,ISO14001,ISO45001

Color:

Red/Blue/Green/Aqua/Beige/Lime/Red

Adapter Type:

MPO

Salt Spray Test:

Can Pass Salt Spray Test

Flange:

With Or Without

Samples:

Can Support

Function:

Fiber Signal Transmission

Packing:

Plastic Bag

Inserted Core Cover:

PC,UPC,APC

Packaging Details:

CARTON

Supply Ability:

Depends on the cavities and toolings

Highlight:

Clean MPO Fiber Optic Adapter

MPO Fiber Optic Adapter

clean Fiber Optic Adapter

Product Description

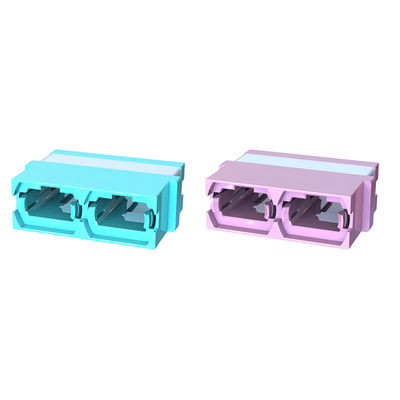

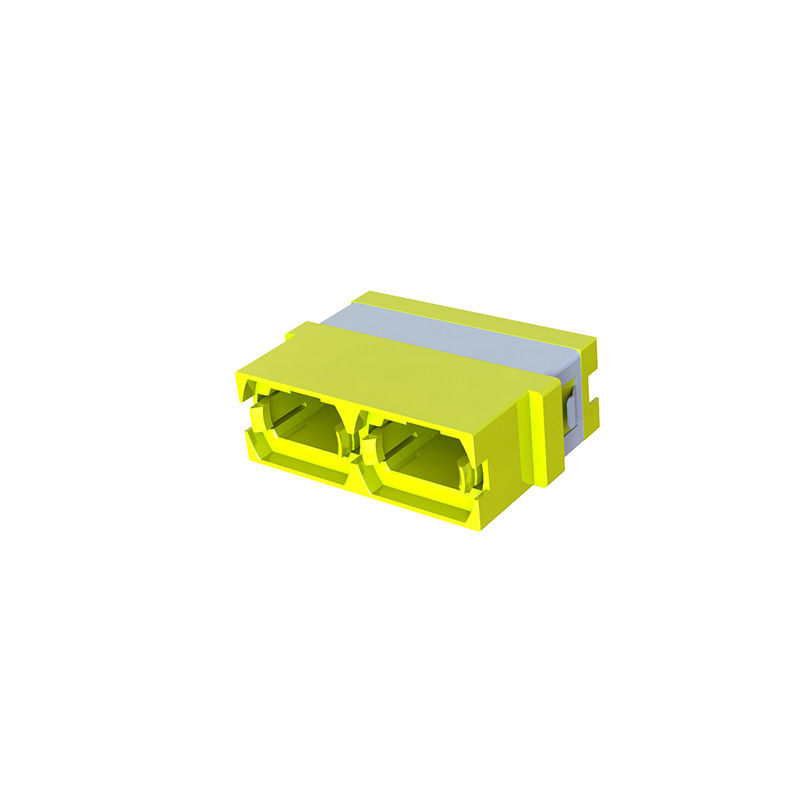

Mating Durability 500 Mating Cycles clean for MPO Fiber Optic Adapter

Fiber Optic Adaptors are color coded allowing easy identification of the adaptor type.

Features
-100% tested on optical performance (Insertion Loss & Return Loss)
-End-face geometry requirement complies to Telcordia GR-326-CORE
-For end-to-end fiber cable connectivity
-Available in singlemode and multimode, including APC and various colours
- Female to female & male to female adapters available

-High Precision Alignment

-Good Wearability

-Good interchangeability

-Good Temperature characteristic

Applications

-CATV

-Active device termination

-Telecommunication networks

-Metro networks

-Wide Area Networks (WANs)

-Test equipment

Environmental & Mechanical Data

Operating Temperature	-40 to +75º C
Storage Temperature:	-40 to +85º C
Temperature Cycling (61300-2-18)	-40 to +75º C, 40 cycles=0.2dB change
High temperature (61300-2-18)	70˚c for 96Hrs, <0.4dB change
Damp Heat (61300-2-19)	40º C at 93%RH for 96 Hrs, <0.4dB change
Vibration-Mated Pair (61300-2-1)	10-55Hz, 1.5mm P to P <0.2dB change
Mating Durability (61300-2-2)	500 Mating Cycles, clean every 25, <0.2dB change
Adapter Material	Plastic
Adapter Color	Black,Blue,Green,Aqua,

FAQ

1.What are you selling ?

We are a factory with 15years experience in high-precision mold design and development as well as plastic product injection .including fiber communication parts, consumer electronic products, Medical Products, Auto parts, especially good at fiber communication field ,like fiber topic connector kits ,fiber adaptor

2.Whats the MOQ?

MOQ is flexible based on the products type.

3.Whats the best price you can offer?

The unit price will vary according to the material you want and the quantity you order

4.Do you support customization?

Yes ,customization is available according to your product requirements.

5.Can I get a sample first?

Yes ,Warmly welcome

6.Can I add my own logo?

Yes.OEM and ODM are available .

Mating Durability 500 Mating Cycles clean for MPO Fiber Optic Adapter 0
