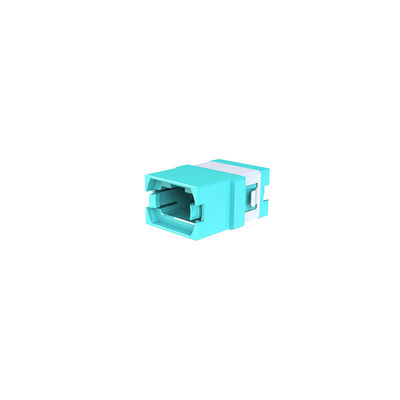

SC APC Optical Fiber Adapter MPO For Active Device Termination Telecommunication

SC APC Optical Fiber Adapter MPO For Active Device Termination Telecommunication

Brand Name:	HACEN
MOQ:	5000PCS
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	Depends on the cavities and toolings

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RoHs ,ISO9001,ISO14001,ISO45001

Features:

Low Insertion Loss Value

Origin:

China

Adapter Type:

MPO

Model Name:

SC APC Fiber Optic Adapters

Fiber Type:

Single Mode

Inner:

Ceramic

Connector Il:

<0.3dB

Specification:

IP65

Packaging Details:

CARTON

Supply Ability:

Depends on the cavities and toolings

Highlight:

Optical Fiber Adapter MPO

SC APC Optical Fiber Adapter

Product Description

Optical Fiber Adapter MPO Suitable For Active Device Termination Telecommunication And Test Equipment

Fiber Optic Adapters are an important component in a fiber optic network; they are used in a fiber optic patch panel or any other outlet to connect two connectors.

Features
- Available in singlemode and multimode, including APC and various colours
- Female to female & male to female adapters available

- Low insertion and return loss and back reflection

- Good repeatability

Applications

- Active device termination

- Telecommunication networks

- Metro networks

- Local Area Networks (LANs)

Environmental & Mechanical Data

Operating Temperature	-40 to +75º C
Storage Temperature:	-40 to +85º C
Temperature Cycling (61300-2-18)	-40 to +75º C, 40 cycles=0.2dB change
High temperature (61300-2-18)	70˚c for 96Hrs, <0.4dB change
Damp Heat (61300-2-19)	40º C at 93%RH for 96 Hrs, <0.4dB change
Vibration-Mated Pair (61300-2-1)	10-55Hz, 1.5mm P to P <0.2dB change
Mating Durability (61300-2-2)	500 Mating Cycles, clean every 25, <0.2dB change
Adapter Material	Plastic
Adapter Color	Black,Blue,Green,Aqua,

FAQ

1.What are you selling ?

We are a factory with 15years experience in high-precision mold design and development as well as plastic product injection .including fiber communication parts, consumer electronic products, Medical Products, Auto parts, especially good at fiber communication field ,like fiber topic connector kits ,fiber adaptor

2.Whats the MOQ?

MOQ is flexible based on the products type.

3.Whats the best price you can offer?

The unit price will vary according to the material you want and the quantity you order

4.Do you support customization?

Yes ,customization is available according to your product requirements.

5.Can I get a sample first?

Yes ,Warmly welcome

6.Can I add my own logo?

Yes.OEM and ODM are available .
