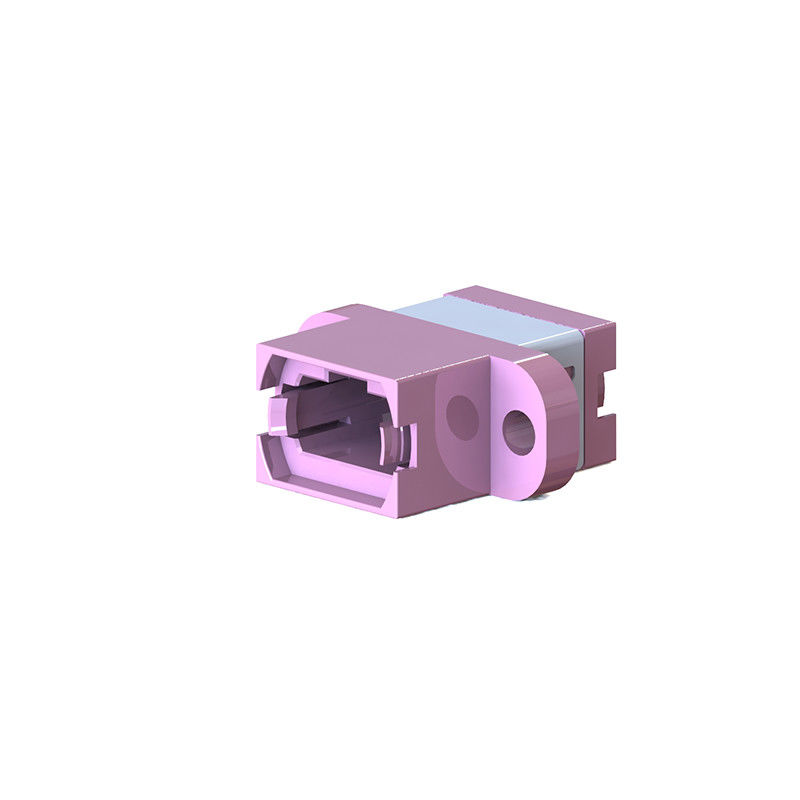

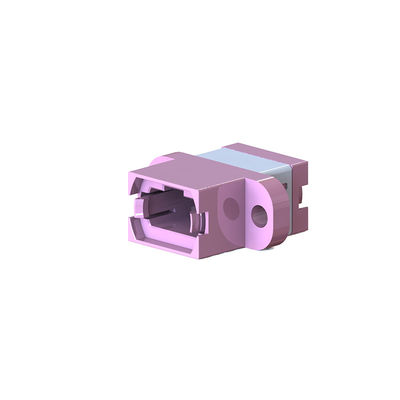

Male To Female Plastic Fiber Optic Adapters MPO Simplex Fiber Channel

Male To Female Plastic Fiber Optic Adapters MPO Simplex Fiber Channel

Brand Name:	HACEN
MOQ:	5000PCS
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	Depends on the cavities and toolings

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RoHs ,ISO9001,ISO14001,ISO45001

HS Code:

8544700000

Origin:

China

Adapter Type:

MPO

Quality:

High Quality Fiber Optic Adapter

Adapter:

FC, SC, ST, LC, MTRJ, MPO, E2000

Inserion Loss:

IL<0.2dB

Insertion Loss:

<0.2dB

Fiber Channel:

Simplex

Packaging Details:

CARTON

Supply Ability:

Depends on the cavities and toolings

Highlight:

Fiber Optic Adapter MPO

Plastic Fiber Optic Adapter

Male To Female Adapters MPO

Product Description

Male to Female Fiber Optic Adapters MPO simplex full Good Wearability and Repeatability

Fiber Optic Adapters are an important component in a fiber optic network; they are used in a fiber optic patch panel or any other outlet to connect two connectors. Fiber Optic adaptors are available for all standard connector types in both singlemode and multimode including Simplex and duplex versions.

Features
- For end-to-end fiber cable connectivity
- Available in singlemode and multimode, including APC and various colours

- Good Wearability

- Good interchangeability

Applications

- CATV

- Active device termination

- Telecommunication networks

- Metro networks

Environmental & Mechanical Data

Operating Temperature	-40 to +75º C
Storage Temperature:	-40 to +85º C
Temperature Cycling (61300-2-18)	-40 to +75º C, 40 cycles=0.2dB change
High temperature (61300-2-18)	70˚c for 96Hrs, <0.4dB change
Damp Heat (61300-2-19)	40º C at 93%RH for 96 Hrs, <0.4dB change
Vibration-Mated Pair (61300-2-1)	10-55Hz, 1.5mm P to P <0.2dB change
Mating Durability (61300-2-2)	500 Mating Cycles, clean every 25, <0.2dB change
Adapter Material	Plastic
Adapter Color	Black,Blue,Green,Aqua,

FAQ

1. What are we selling ?
Fiber optic connectors and adapters. like LC .MPO.SC.E2OOO…..also you can set up new mold with us. We offer service from mold design to final plastic molding injection

2. How can we guarantee quality?

From raw materials to final shipment, we can offer inspection report or related certifications.

3. Why us ?
We focus on the fiber optical components for over 15 years , such as adapters, connectors and ONU boxes . experienced in molding injection for over 20years like consumer plastic ,auto plastic ,

4. What materials are we using ?

TPEE, TPU, PEI, PBT, nylon, LCP, PPS, POM, PC, ABS and some others too.

5. Do you support customization?

Yes , both OEM and ODM are available.
