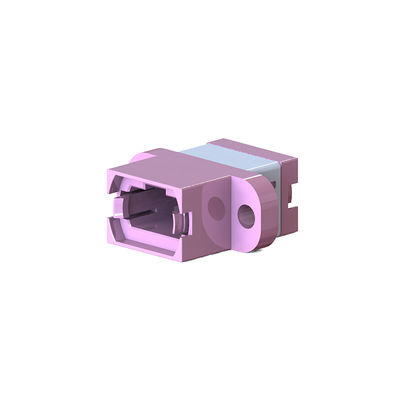

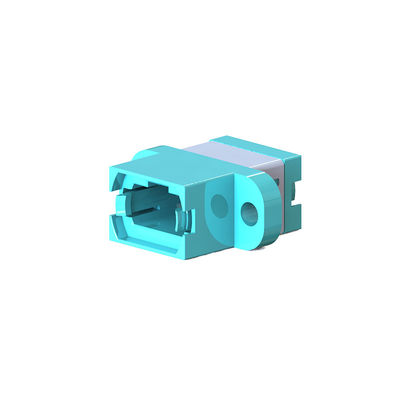

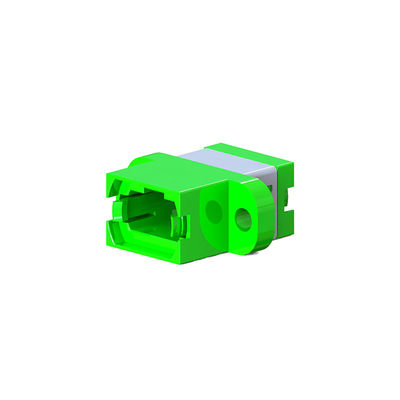

MPO Fiber Optic Adapter Panel For Test Equipment And Local Area Networks LANs

MPO Fiber Optic Adapter Panel For Test Equipment And Local Area Networks LANs

Brand Name:	HACEN
MOQ:	5000PCS
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	Depends on the cavities and toolings

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RoHs ,ISO9001,ISO14001,ISO45001

Document:

MPO simplex.pdf

Color:

Red/Blue/Green

Adapter Type:

MPO

Ferrule Diameter:

123um~127um

Housing:

PEI

Factory:

Yes

Fiber Count:

Simplex, Duplex

Network:

Other

Usage:

Telecommunications

Packaging Details:

CARTON

Supply Ability:

Depends on the cavities and toolings

Highlight:

MPO Fiber Optic Adapter Panel

Product Description

MPO Fiber Optic Adapter Panel For Test Equipment And Local Area Networks LANs

Our fiber optic adapters are made with high precision machines which ensure precise alignment for the connectors when they are plugged in.

Please note that this document is for reference purposes only and may not fully correspond to the actual product. To ensure accuracy and prevent any information leakage .please contact us directly for the correct documentation.

Features
- 100% tested on optical performance (Insertion Loss & Return Loss)
- End-face geometry requirement complies to Telcordia GR-326-CORE
- For end-to-end fiber cable connectivity

- Good interchangeability

Applications

- CATV

- Active device termination

- Telecommunication networks

- Metro networks

- Local Area Networks (LANs)

- Test equipment

Environmental & Mechanical Data

Operating Temperature	-40 to +75º C
Storage Temperature:	-40 to +85º C
Temperature Cycling (61300-2-18)	-40 to +75º C, 40 cycles=0.2dB change
High temperature (61300-2-18)	70˚c for 96Hrs, <0.4dB change
Damp Heat (61300-2-19)	40º C at 93%RH for 96 Hrs, <0.4dB change
Vibration-Mated Pair (61300-2-1)	10-55Hz, 1.5mm P to P <0.2dB change
Mating Durability (61300-2-2)	500 Mating Cycles, clean every 25, <0.2dB change
Adapter Material	Plastic
Adapter Color	Black,Blue,Green,Aqua,

FAQ

1.What are you selling ?

We are a factory with 15years experience in high-precision mold design and development as well as plastic product injection .including fiber communication parts, consumer electronic products, Medical Products, Auto parts, especially good at fiber communication field ,like fiber topic connector kits ,fiber adaptor

2.Whats the MOQ?

MOQ is flexible based on the products type.

3.Whats the best price you can offer?

The unit price will vary according to the material you want and the quantity you order

4.Do you support customization?

Yes ,customization is available according to your product requirements.

5.Can I get a sample first?

Yes ,Warmly welcome

6.Can I add my own logo?

Yes.OEM and ODM are available .
