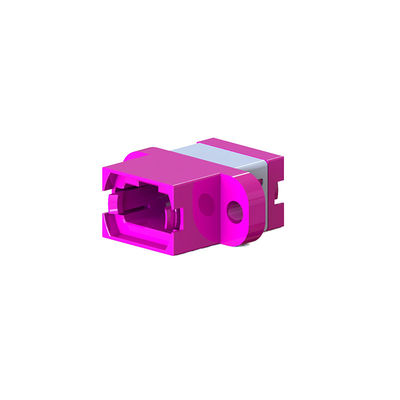

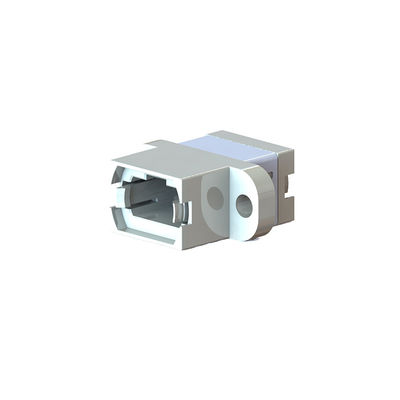

Fiber Optic Network Adapter MPO Are Widely Used In CATV Telecommunication And Test Equipment

Fiber Optic Network Adapter MPO Are Widely Used In CATV Telecommunication And Test Equipment

Brand Name:	HACEN
MOQ:	5000PCS
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	Depends on the cavities and toolings

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RoHs ,ISO9001,ISO14001,ISO45001

Environment Conditions:

- 25 °C ~ + 85 °C

Adapter Type:

MPO

Housing Material:

Plastic

Packing:

Standard Export Package

Warranty Time:

1Year

Type:

Single Mode

Product Durability:

≥1000 Times

Product Application:

Telecommunication

Packaging Details:

CARTON

Supply Ability:

Depends on the cavities and toolings

Highlight:

MPO Fiber Optic Network Adapter

CATV Fiber Optic Network Adapter

Product Description

Fiber Optic Network Adapter MPO Are Widely Used In CATV Telecommunication And Test Equipment

Fiber Optic Adapters are an important component in a fiber optic network; they are used in a fiber optic patch panel or any other outlet to connect two connectors. Fiber Optic adaptors are available for all standard connector types in both singlemode and multimode including Simplex and duplex versions.

Features
- 100% tested on optical performance (Insertion Loss & Return Loss)
- End-face geometry requirement complies to Telcordia GR-326-CORE

- Low insertion and return loss and back reflection

- High Precision Alignment

- Good repeatability

Applications

- CATV

- Active device termination

- Telecommunication networks

- Metro networks

- Test equipment

Environmental & Mechanical Data

Operating Temperature	-40 to +75º C
Storage Temperature:	-40 to +85º C
Temperature Cycling (61300-2-18)	-40 to +75º C, 40 cycles=0.2dB change
High temperature (61300-2-18)	70˚c for 96Hrs, <0.4dB change
Damp Heat (61300-2-19)	40º C at 93%RH for 96 Hrs, <0.4dB change
Vibration-Mated Pair (61300-2-1)	10-55Hz, 1.5mm P to P <0.2dB change
Mating Durability (61300-2-2)	500 Mating Cycles, clean every 25, <0.2dB change
Adapter Material	Plastic
Adapter Color	Black,Blue,Green,Aqua,

FAQ

1. What are we selling ?
Fiber optic connectors and adapters. like LC .MPO.SC.E2OOO…..also you can set up new mold with us. We offer service from mold design to final plastic molding injection

2. How can we guarantee quality?

From raw materials to final shipment, we can offer inspection report or related certifications.

3. Why us ?
We focus on the fiber optical components for over 15 years , such as adapters, connectors and ONU boxes . experienced in molding injection for over 20years like consumer plastic ,auto plastic ,

4. What materials are we using ?

TPEE, TPU, PEI, PBT, nylon, LCP, PPS, POM, PC, ABS and some others too.

5. Do you support customization?

Yes , both OEM and ODM are available.
