High Precision Interchangeable MPO Fiber Connector For Smooth Data Transmission

High Precision Interchangeable MPO Fiber Connector For Smooth Data Transmission

Brand Name:	HACEN
Model Number:	MPO
MOQ:	5000PCS
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	Depends on the cavities and toolings

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN,CHINA

Certification:

RoHs ,ISO9001,ISO14001,ISO45001

Document:

0-C20030501B-MPOmini .pdf

Insertion Loss:

<0.5dB

Tensile Strength:

100N

Return Loss:

>55dB

Ferrule Material:

Ceramic/Metal

Ferrule Polish:

PC/UPC/APC

Color:

Black/Beige/Magenta

Fiber Type:

Single-mode/Multimode

Compliance:

RoHS/IEC/TIA/EIA/GR-326-CORE

Mating Durability:

0.2dB Max Increase

Operating Temperature:

-40°C To +85°C

Housing Material:

Plastic/Metal

Connector Type:

Male/Female

Packaging Details:

Carton

Supply Ability:

Depends on the cavities and toolings

Highlight:

High Precision MPO Fiber Connector

Data Transmission MPO Fiber Connector

Product Description

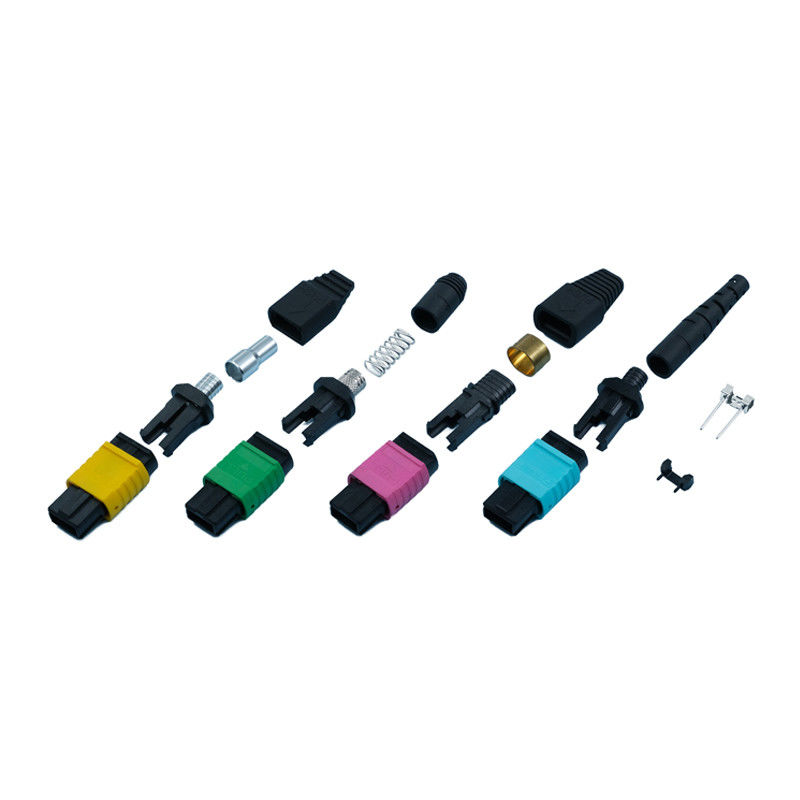

High Precision and Interchangeable MPO Connector for Smooth Data Transmission

The MPO Fiber connector can be 4 to 24 cores,with different boot for reference,such as Ribbon boot,round boota and rare boot

Availablity
- The connector can be supplied as a pre-assembled one-piece connector or as connector kits.

- Housing kits with /without ferrule are available

Features

- Low insertion loss and high return loss

- Strong environment and high temperature stability

- Excellent interchangeability and repeatability

- High Precision Alignment

Applications

- Data transmission network

- CATV, LAN & Access Network

- Fiber Optic Patch Cord & Pigtail

- Data centers and enterprise networks

- Parallel optical transmission in high-performance computing environments

Advantages

- Hig density (4/8/12/16/24 fibers per ferrule)

- Ease of installation (Pre-terminated MPO assemblies simplify installation)

- Reduce downtime (MPO connectors enable quick reconfiguration and easier troubleshooting)

- Flexibility (MPO connectors can be used in a variety of configurations)

FAQ

1. What are we selling ?
Fiber optic connectors and adapters. like LC .MPO.SC.E2OOO…..also you can set up new mold with us. We offer service from mold design to final plastic molding injection

2. How can we guarantee quality?

From raw materials to final shipment, we can offer inspection report or related certifications.

3. Why us ?
We focus on the fiber optical components for over 15 years , such as adapters, connectors and ONU boxes . experienced in molding injection for over 20years like consumer plastic ,auto plastic ,

4. What materials are we using ?

TPEE, TPU, PEI, PBT, nylon, LCP, PPS, POM, PC, ABS and some others too.

5. Do you support customization?

Yes , both OEM and ODM are available.
