Single Mode Fiber Connectors UPC/APC SC Fast Kits Quick Assembly Connector 500 Mating Cycles

Single Mode Fiber Connectors UPC/APC SC Fast Kits Quick Assembly Connector 500 Mating Cycles

Brand Name:	HACEN
MOQ:	5000PCS
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union,
Supply Ability:	Depends on the cavities and toolings

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RoHs ,ISO9001,ISO14001,ISO45001

Color:

Magenta

Meet Standards:

RoHs,Reach,ISO Series

Ferrule Material:

Ceramic

Application:

Telecommunication, Data Communication, CATV, LAN, MAN, WAN, FTTx

Fiber Count:

Simplex/Duplex

Durability:

500 Mating Cycles

Fiber Polishing:

PC/UPC/APC

Ferrule Diameter:

2 Mm

Packaging Details:

CARTON

Supply Ability:

Depends on the cavities and toolings

Highlight:

APC SC Single Mode Fiber Connectors

UPC SC Single Mode Fiber Connectors

Fast Kits Quick Assembly Connector

Product Description

Single Mode Fiber Connectors UPC/APC SC fast kits with quick assembly connector

Availability
- The connector can be supplied as a pre-assembled one-piece connector or as connector kits.

- Simplex and Duplex

- Boots in a variety of colors

Advantages

- Low insertion loss and return loss

- Free-floating ceramic ferrule

- ISO9001/ISO14001/ISO45001

- 100% pre-terminated and tested in factory to ensure transfer performance

Features

- Push-Pull type connector
- Rapid configuration and networking, reduce installation time

- High Reliability

- Widely Adopted

- Easy to Handle

Applications

- Fiber Optic Patch Cord & Pigtail

- CATV, metro test equipment; FTTH

- Telecommunication system

SC Fiber Connector	SM UPC/APC	MM
Insertion Loss Typical	0.1dB	0.1dB
Insertion Loss Max	0.35dB	0.3dB
Return Loss Typical	APC≥60	≥25

FAQ

1.What are you selling ?

We are a factory with 15years experience in high-precision mold design and development as well as plastic product injection .including fiber communication parts, consumer electronic products, Medical Products, Auto parts, especially good at fiber communication field ,like fiber topic connector kits ,fiber adaptor.

2.Whats the MOQ?

MOQ is flexible based on the products type.

3.Whats the best price you can offer?

The unit price will vary according to the material you want and the quantity you order.

4.Do you support customization?

Yes ,customization is available according to your product requirements.

Single Mode Fiber Connectors UPC/APC SC Fast Kits Quick Assembly Connector 500 Mating Cycles 0

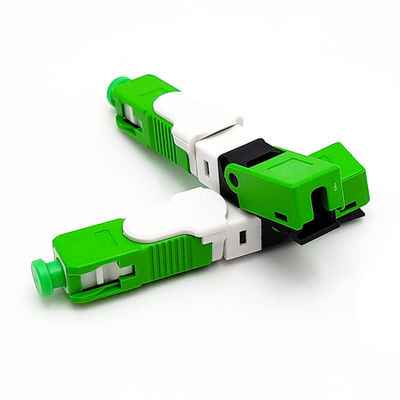

Single Mode Fiber Connectors UPC/APC SC Fast Kits Quick Assembly Connector 500 Mating Cycles 1
