Fiber Optic LC Connectors 0.9mm Simplex Auga With Fire Resistance UL94V-0

Fiber Optic LC Connectors 0.9mm Simplex Auga With Fire Resistance UL94V-0

Brand Name:	HACEN
MOQ:	3000PCS
Price:	0.1-0.5
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	Depends on the cavities and toolings

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RoHs ,ISO9001,ISO14001,ISO45001

Lead Time:

3-7working Days

Fiber Type:

Single-mode/Multimode

Fiber Cable Diameter:

0.9mm, 2.0mm, 3.0mm

Operating Temperature:

-40°C To +85°C

Product Type:

Fiber Optic Connector

Fiber Cable Length:

Customizable

Fiber Diameter:

125um

Connector Type:

Packaging Details:

CARTON

Supply Ability:

Depends on the cavities and toolings

Highlight:

Fire Resistance LC connectors

UL94V-0 LC connectors

0.9mm simplex LC connectors

Product Description

Fiber optic LC connectors 0.9mm simplex Auga with fire resistance UL94V-0

The LC fiber optic connector is a widely used and compact fiber connector type, popular in telecommunications, data centers, and other high-density networking environments. Here’s a brief overview.

LC Fiber Connector	SM UPC/APC	MM
Insertion Loss Typical	0.15dB	0.1dB
Insertion Loss Max	0.3dB	0.3dB
Return Loss Typical	APC≥65 UPC≥55	≥25
Ferrule Size	125.3um	127um

A vailability
- The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
- Housing kits without ferrule are available.
- PC/ APC /UPC are available

- Different colors and size are available

Feature

- Low insertion loss and return loss

- Free-floating ceramic ferrule

- High precision alignment

Application

- CATV, metro test equipment; FTTH;

- Telecommunication system;

- Local area networks (LANs);

- Wide area networks (WANs);

- Passive Optical Networks (PONs);

FAQ

1. What are we selling ?
Fiber optic connectors and adapters. like LC .MPO.SC.E2OOO…..also you can set up new mold with us. We offer service from mold design to final plastic molding injection

2. How can we guarantee quality?

From raw materials to final shipment, we can offer inspection report or related certifications.

3. Why us ?
We focus on the fiber optical components for over 15 years , such as adapters, connectors and ONU boxes . experienced in molding injection for over 20years like consumer plastic ,auto plastic ,

4. What materials are we using ?

TPEE, TPU, PEI, PBT, nylon, LCP, PPS, POM, PC, ABS and some others too.

5. Do you support customization?

Yes , both OEM and ODM are available.

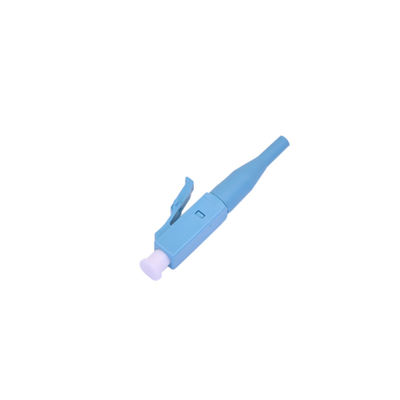

Fiber Optic LC Connectors 0.9mm Simplex Auga With Fire Resistance UL94V-0 0

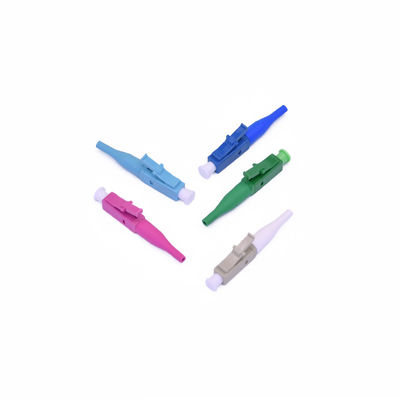

Fiber Optic LC Connectors 0.9mm Simplex Auga With Fire Resistance UL94V-0 1
