Multimode Fiber LC Connector Termination Kits 0.9mm Duplex With Low Insetion Loss

Brand Name:	HACEN
MOQ:	3000PCS
Price:	0.11-0.3
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	Depends on the cavities and toolings

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RoHs ,ISO9001,ISO14001,ISO45001

Product Type:

Fiber Optic Connector

Fiber Cable Length:

Customizable

Connector Type:

Material:

PEI PBT

Ferrule Size:

1.25mm

Fiber Connector:

LC/UPC, LC/APC

Fiber Type:

Single-mode/Multimode

Fiber Cable Diameter:

0.9mm, 2.0mm, 3.0mm

Packaging Details:

CARTON

Supply Ability:

Depends on the cavities and toolings

Highlight:

multimode fiber LC connector Termination Kits

0.9mm duplex LC connector Termination Kits

Product Description

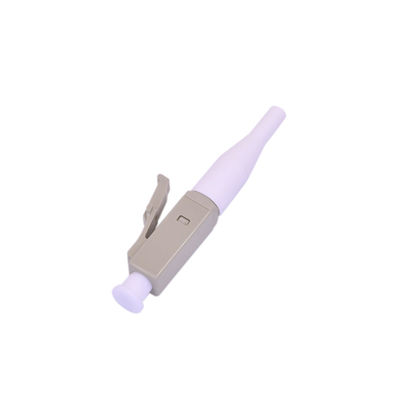

multimode fiber LC connector Termination Kits 0.9mm duplex with low insetion loss

LC Fiber Connector	SM UPC/APC	MM
Insertion Loss Typical	0.15dB	0.1dB
Insertion Loss Max	0.3dB	0.3dB
Return Loss Typical	APC≥65 UPC≥55	≥25
Ferrule Size	125.3um	127um

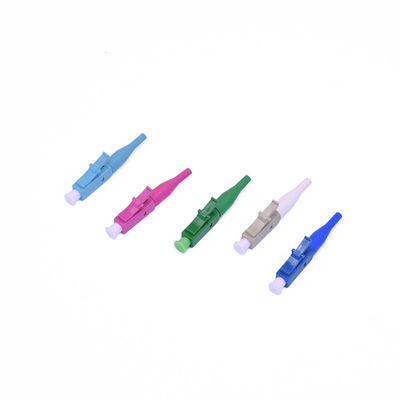

LC Simplex Connectors

-Efficient Design: Ultra-compact SFF for space optimization.

-Versatile: Compatible with 0.9mm, 2.0mm, and 3.0mm boot connectors.

-Applications: Suitable for single and multi-mode applications.

Availability
-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
-Housing kits without ferrule are available.
-PC/ APC /UPC are available

-Different colors and size are available

Application

- CATV, metro test equipment; FTTH;

- Telecommunication system;

- Local area networks (LANs);

FAQ

1. What are we selling ?
Fiber optic connectors and adapters. like LC .MPO.SC.E2OOO…..also you can set up new mold with us. We offer service from mold design to final plastic molding injection

2. How can we guarantee quality?

From raw materials to final shipment, we can offer inspection report or related certifications.

3. Why us ?
We focus on the fiber optical components for over 15 years , such as adapters, connectors and ONU boxes . experienced in molding injection for over 20years like consumer plastic ,auto plastic ,

4. What materials are we using ?

TPEE, TPU, PEI, PBT, nylon, LCP, PPS, POM, PC, ABS and some others too.

5. Do you support customization?

Yes , both OEM and ODM are available.
