Quick Connect Fiber Optic Connectors LC 0.9mm 3.0mm Simplex Duplex Kind Fiber Kits

Quick Connect Fiber Optic Connectors LC 0.9mm 3.0mm Simplex Duplex Kind Fiber Kits

Brand Name:	HACEN
MOQ:	3000PCS
Price:	0.11-0.3
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	Depends on the cavities and toolings

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RoHs ,ISO9001,ISO14001,ISO45001

Color:

Blue/Green/Beige/Aqua

Boot Type:

Standard/Short/Long

Insertion Loss:

≤0.2dB

Connector Type:

Diameter:

2.0mm/3.0mm

Polishing Type:

UPC/APC

Fiber Type:

Single Mode/Multimode

Application:

FTTH FTTB FTTX Network

Packaging Details:

CARTON

Supply Ability:

Depends on the cavities and toolings

Highlight:

Duplex LC Fiber Optic Connectors

0.9mm LC Fiber Optic Connectors

3.0mm LC Fiber Optic Connectors

Product Description

quick connect fiber optic connectors LC 0.9mm 3.0mm simplex duplex kind fiber kits

LC Fiber Connector	SM UPC/APC	MM
Insertion Loss Typical	0.15dB	0.1dB
Insertion Loss Max	0.3dB	0.3dB
Return Loss Typical	APC≥65 UPC≥55	≥25
Ferrule Size	125.3um	127um

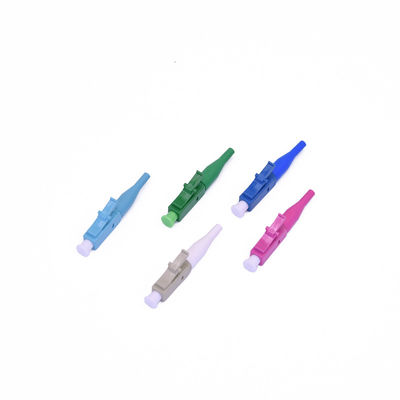

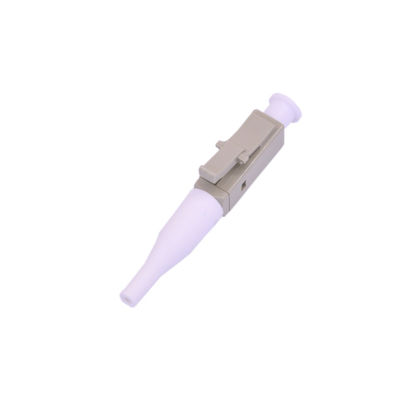

LC Simplex Connectors

-Efficient Design: Ultra-compact SFF for space optimization.

-Versatile: Compatible with 0.9mm, 2.0mm, and 3.0mm boot connectors.

-Applications: Suitable for single and multi-mode applications.

Availability
-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
-Housing kits without ferrule are available.
-PC/ APC /UPC are available

-Different colors and size are available

Application

- CATV, metro test equipment; FTTH;

- Telecommunication system;

- Local area networks (LANs);
