Versatile LC Fiber Optic Connector For 0.9mm 2.0mm And 3.0mm Boot Connectors

Versatile LC Fiber Optic Connector For 0.9mm 2.0mm And 3.0mm Boot Connectors

Brand Name:	HACEN
MOQ:	5000PCS
Price:	0.11-0.3
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	Depends on the cavities and toolings

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RoHs ,ISO9001,ISO14001,ISO45001

Boot Type:

Standard/Short/Long

Fiber Count:

Simplex/Duplex

Fiber Polishing:

PC/UPC/APC

Return Loss:

>50dB (UPC), >60dB (APC)

Temperature Range:

-40°C To +85°C

Insertion Loss:

<0.2dB (UPC), <0.3dB (APC)

Fiber Cable Diameter:

0.9mm, 2.0mm, 3.0mm

Connector:

Packaging Details:

CARTON

Supply Ability:

Depends on the cavities and toolings

Highlight:

3.0mm LC Fiber Optic Connector

0.9mm LC Fiber Optic Connector

2.0mm LC Fiber Optic Connector

Product Description

Versatile LC Fiber Optic Connector for 0.9mm 2.0mm and 3.0mm Boot Connectors

LC Fiber Connector	SM UPC/APC	MM
Insertion Loss Typical	0.15dB	0.1dB
Insertion Loss Max	0.3dB	0.3dB
Return Loss Typical	APC≥65 UPC≥55	≥25
Ferrule Size	125.3um	127um

LC Simplex Connectors

-Efficient Design: Ultra-compact SFF for space optimization.

-Versatile: Compatible with 0.9mm, 2.0mm, and 3.0mm boot connectors.

-Applications: Suitable for single and multi-mode applications.

Availability
-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
-Housing kits without ferrule are available.
-PC/ APC /UPC are available

-Different colors and size are available

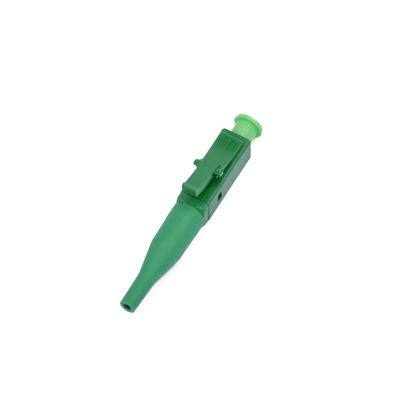

Versatile LC Fiber Optic Connector For 0.9mm 2.0mm And 3.0mm Boot Connectors 0

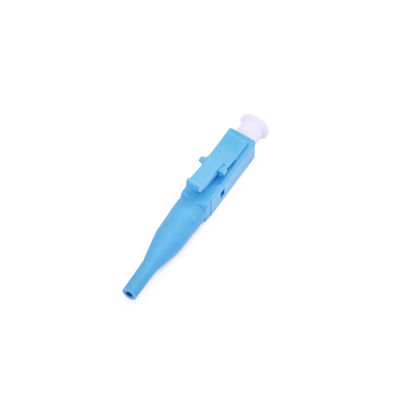

Versatile LC Fiber Optic Connector For 0.9mm 2.0mm And 3.0mm Boot Connectors 1
