MPO 5.0mm Fiber Optic Connector Bare Ribbon Boot 12/24 Core Ferrule Fiber Jack

Name

MPO 5.0mm Fiber Optic Connector Bare Ribbon Boot 12/24 Core Ferrule Fiber Jack

Brand Name: HACEN
Model Number: MPO
MOQ: 5000PCS
Price: 0.4-0.7
Payment Terms: T/T, , Western Union
Supply Ability: Depends on the cavities and toolings
Detail Information
Product Description
Detail Information
Place of Origin:
SHENZHEN,CHINA
Certification:
RoHs ,ISO9001,ISO14001,ISO45001
Connector Type:
Male And Female
Durability:
500 Cycles
Compliance:
RoHS, Reach,ISO
Tensile Strength:
70 N
Mating Durability:
0.2 DB Max Increase
Housing Color:
Blue, Green Or Customized
Rohs Compliant:
Yes
Boot Type:
Standard/Angle Polish
Packaging Details:
Carton
Supply Ability:
Depends on the cavities and toolings
Highlight:

5.0mm MPO Fiber Optic Connector

,

Fiber Optic Bare Ribbon Boot

,

12/24 Core Fiber Optic Connector

Product Description

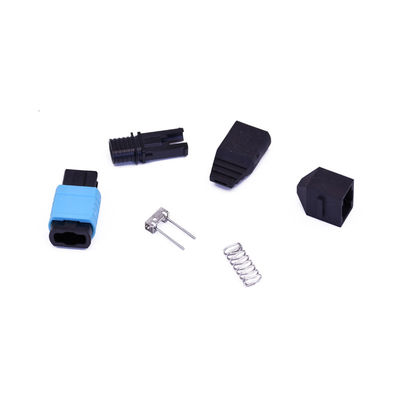

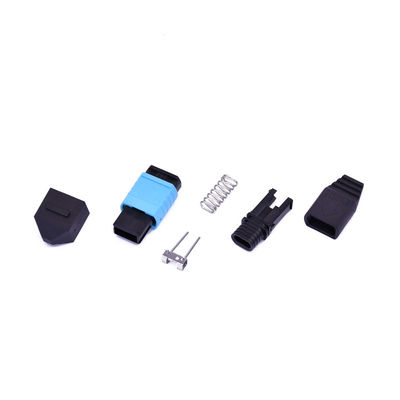

MPO 5.0mm Fiber Optic Connector bare ribbon boot 12/24 core ferrule fiber jack



Availablity
- The connector can be supplied as a pre-assembled one-piece connector or as connector kits.

- Housing kits with /without ferrule are available



Features

- Low insertion loss and high return loss

- Strong environment and high temperature stability

- Excellent interchangeability and repeatability

- High Precision Alignment



Advantages

- Scalability (Support 40G/100G/400G networks)

- Ease of installation (Pre-terminated MPO assemblies simplify installation)

- Flexibility (MPO connectors can be used in a variety of configurations)

MPO Fiber Connector SM APC MM
Insertion Loss Typical 0.1 0.1
Insertion Loss Max 0.35 0.3
Return Loss Typical APC≥60 ≥25



MPO 5.0mm Fiber Optic Connector Bare Ribbon Boot 12/24 Core Ferrule Fiber Jack 0MPO 5.0mm Fiber Optic Connector Bare Ribbon Boot 12/24 Core Ferrule Fiber Jack 1MPO 5.0mm Fiber Optic Connector Bare Ribbon Boot 12/24 Core Ferrule Fiber Jack 2MPO 5.0mm Fiber Optic Connector Bare Ribbon Boot 12/24 Core Ferrule Fiber Jack 3MPO 5.0mm Fiber Optic Connector Bare Ribbon Boot 12/24 Core Ferrule Fiber Jack 4
