Right Angle Fiber Optic Connector LC 2.0mm round boot SM /mM version for FTTH network

Name

Right Angle Fiber Optic Connector LC 2.0mm round boot SM /mM version for FTTH network

Brand Name:	HACEN
Model Number:	LC
MOQ:	3000PCS
Price:	0.11-0.29
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	Depends on the cavities and toolings

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RoHs ,ISO9001,ISO14001,ISO45001

Fiber Polishing:

PC/UPC/APC

Return Loss:

>50dB (UPC), >60dB (APC)

Temperature Range:

-40°C To +85°C

Fiber Cable Diameter:

0.9mm, 2.0mm, 3.0mm

Connector:

LC

Cable Length:

Customized

Product Type:

Fiber Optic Connector

Application:

FTTH FTTB FTTX Network

Packaging Details:

CARTON

Supply Ability:

Depends on the cavities and toolings

Product Description

Right Angle Fiber Optic Connector LC 2.0mm round boot SM /mM version for FTTH network

LC Fiber Connector	SM UPC/APC	MM
Insertion Loss Typical	0.15dB	0.1dB
Insertion Loss Max	0.3dB	0.3dB
Return Loss Typical	APC≥65 UPC≥55	≥25
Ferrule Size	125.3um	127um

LC Simplex Connectors

-Efficient Design: Ultra-compact SFF for space optimization.

-Versatile: Compatible with 0.9mm, 2.0mm, and 3.0mm boot connectors.

-Applications: Suitable for single and multi-mode applications.

Availability
-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
-Housing kits without ferrule are available.
-PC/ APC /UPC are available

-Different colors and size are available

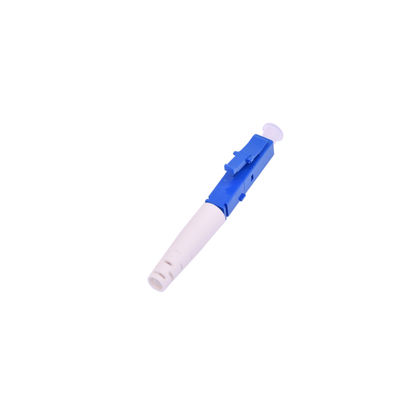

Right Angle Fiber Optic Connector LC 2.0mm round boot SM /mM version for FTTH network 0

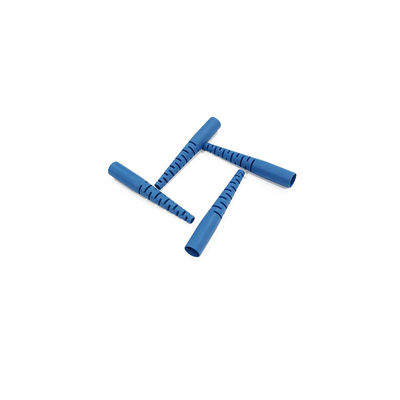

Right Angle Fiber Optic Connector LC 2.0mm round boot SM /mM version for FTTH network 1

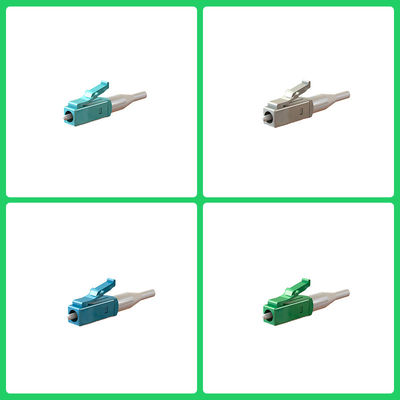

Right Angle Fiber Optic Connector LC 2.0mm round boot SM /mM version for FTTH network 2
