LC LC Fiber Connector 2.0mm 3.0mm Round Long Boot For FTTH Network Duplex Mode

Name

LC LC Fiber Connector 2.0mm 3.0mm Round Long Boot For FTTH Network Duplex Mode

Brand Name:	HACEN
Model Number:	LC
MOQ:	3000PCS
Price:	0.15-0.29
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	Depends on the cavities and toolings

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RoHs ,ISO9001,ISO14001,ISO45001

Fiber Diameter:

0.9mm, 2.0mm, 3.0mm

Connector:

LC

Length:

Customized

Product Type:

Fiber Optic Connector

Application:

FTTH FTTB FTTX Network

Fiber Polishing:

PC/UPC/APC

Fiber Color:

Blue/Beige/Green/Beige

Tensile Strength:

≥7N

Packaging Details:

CARTON

Supply Ability:

Depends on the cavities and toolings

Product Description

LC LC Fiber Connector 2.0mm 3.0mm Round Long Boot For FTTH Network Duplex Mode

LC Fiber Connector	SM UPC/APC	MM
Insertion Loss Typical	0.15dB	0.1dB
Insertion Loss Max	0.3dB	0.3dB
Return Loss Typical	APC≥65 UPC≥55	≥25
Ferrule Size	125.3um	127um

LC Simplex Connectors

-Efficient Design: Ultra-compact SFF for space optimization.

-Versatile: Compatible with 0.9mm, 2.0mm, and 3.0mm boot connectors.

-Applications: Suitable for single and multi-mode applications.

Availability
-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
-Housing kits without ferrule are available.
-PC/ APC /UPC are available

-Different colors and size are available

Feature

-Low insertion loss and return loss

-Free-floating ceramic ferrule

-UL-rated plastic housing and boot

-Boots in a variety of colors

-High precision alignment

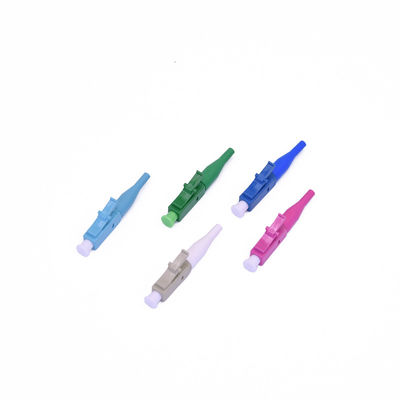

LC LC Fiber Connector 2.0mm 3.0mm Round Long Boot For FTTH Network Duplex Mode 0

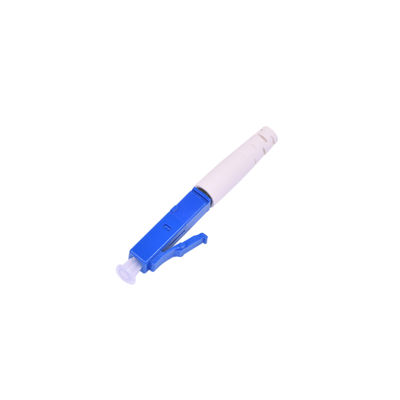

LC LC Fiber Connector 2.0mm 3.0mm Round Long Boot For FTTH Network Duplex Mode 2

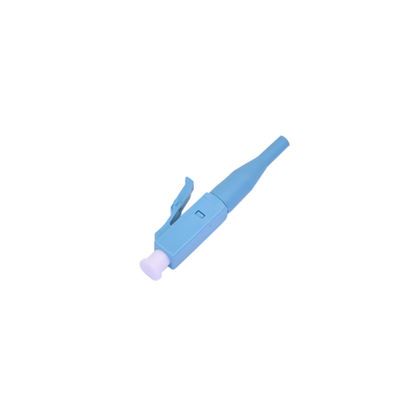

LC LC Fiber Connector 2.0mm 3.0mm Round Long Boot For FTTH Network Duplex Mode 3
